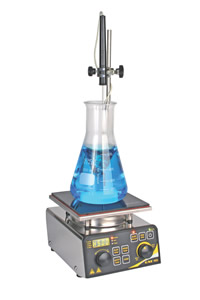

M 23 Hotplate Magnetic Stirrer


M 22 Hotplate Magnetic Stirrer

Volume: 10l
Hotplate: Ceran © :square
Price: $1,034.00



Description


Microprocessor controlled heatable magnetic stirrer

  • 4-digit LED display, Ceran© hotplate: square 135×135 mm
  • 600 watt, RT (+5 °C) -500 °C
  • external Pt100 connection
  • contact thermometer connection
  • maintenance-free motor: 60-1600 1/min
  • safety temperature
  • timer
  • RS485 interface (RS232 via adapter available)

See Also: MCS67 Hotplate Magnetic Stirrer      Magnetic Hotplate Stirrers


Specifications


Type M 23 Specifications
Motor split-pole, 25 Watts
60 – 1600 min-1
Softstart, microprocessor controlled
Display 4 digit 7Segment-LED display
Hotplate M 23: Ceran ©
Hotplate 135 x 135 mm
Heating Power 600 watts
Motor Specification • Microprocessor controlled
• Soft start logic
• Steplessly adjustable, 50 – 1600 rpm
• Split-pole, 40 watts
Temperature Control • Microprocessor controlled (PID Control)
• Pt100 probe adjustable in 1°C Steps
• Hotplate adjustable in 1°C Steps up to 500°C
• Programmable probe temperature (Pt100)
• Programmable hotplate temperature
• Programmable safety temperature
Temperature range heated medium Up to 250°C
Safety System Detects and protects against the following hazardous situations:
• Hotplate failure (hotplate exceeds max. allowed temperature)
• Probe failure (disconnection or break of Pt100 probe)
• Detection of out-of-liquid condition, e.g. stirring vessel breaks
•Differential safety cut-out (external probe senses an extreme fall in temperature of liquid being stirred/heated)
• Triac failure
Switch-off Time Delay Programmable switch-off time delay
min. delay: 1 minute
max. delay: 999 minutes
Temperature Sensor Hotplate: Thermocouple
External: Platinum Resistance Sensor (Pt100)
Setpoint resolution hot plate 1°C / 1K (1°F in Fahrenheit Mode)
Setpoint resolution Pt100 Probe 1°C / 1K (1°F in Fahrenheit Mode)
Typical Temperature Stability With Pt100 Use ± 0.4 °C
Recommended Stirring Bar Length: 55mm (30-70mm)
Diameter: 10mm (5-12mm)
Permissible Ambient Temperature 5 – 40 °C
Permissible Humidity 80 % RH
Safety Class Acc. To DIN 40050 IP32
Case Dimensions WxDxH 145 x 210 x 100 mm
Weight 2,6 kg


Accessories


Accessories

The following accessories are available for the MCS66:

  • Pt100 Temperature Probe – 60278-00  $114.00
  • Stand – 60663-00  $28.00
  • Probe Clamp – 8B005624   $49.00
  • Clamp – 60668-00  $43.00
